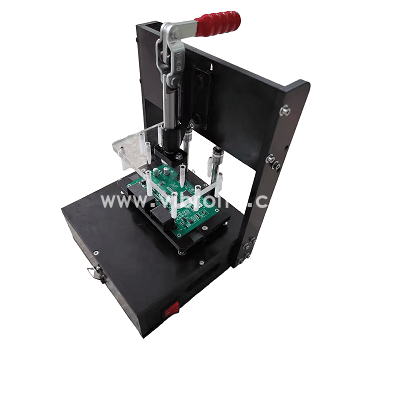

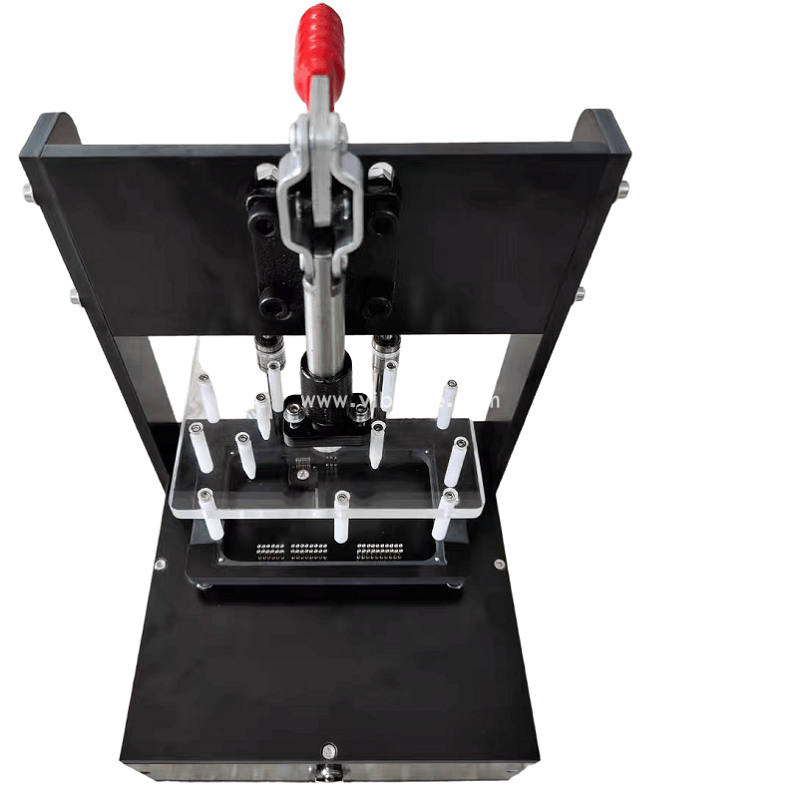

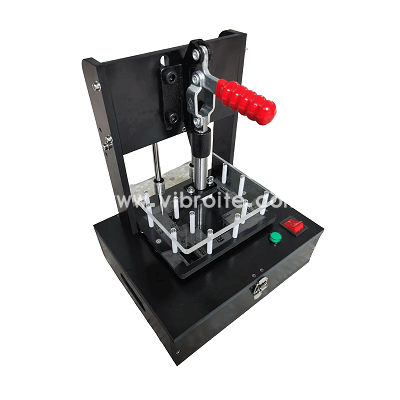

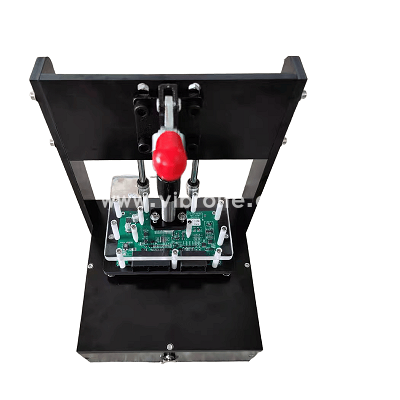

This PCB test fixture is designed and manufactured by Suzhou Vibrant Automation Co., Ltd., as part of the Vibroite precision tooling and automation testing solutions portfolio.

The fixture features a rigid aluminum frame that ensures excellent structural stability and repeatable positioning accuracy during testing. A manual press-down mechanism enables reliable contact between test probes and PCB test points, offering safe, simple, and controlled operation for manual testing stations.

The fixture platform can be customized based on PCB size, hole positions, and test point layouts, and is compatible with various probe types and test interfaces. It is widely used in electronics manufacturing, EMS factories, and R&D laboratories.

Solution

In electronics manufacturing and testing processes, Vibroite PCB test fixtures serve as a key component of standardized testing solutions, enabling stable and repeatable manual or semi-automatic testing.

Typical solution applications include:

• PCBA functional and continuity testing

• Rapid prototype verification during R&D

• In-process inspection and quality control in mass production

By customizing fixture structure, pressing stroke, and probe layout, Suzhou Vibrant Automation Co., Ltd. delivers PCB testing solutions precisely matched to test equipment and production stations, reducing false readings and improving testing efficiency and consistency.
