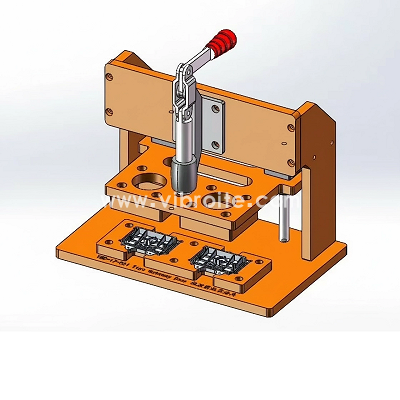

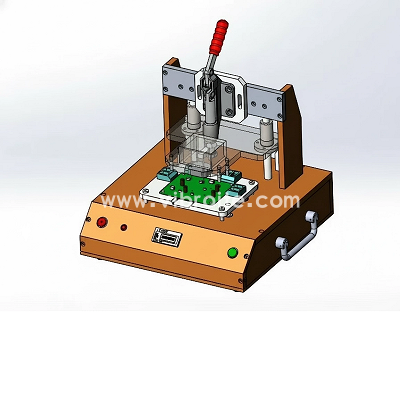

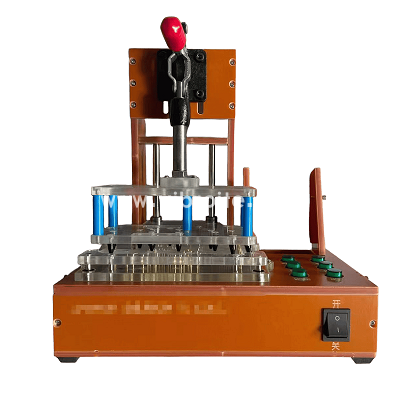

This PCB test fixture is designed and manufactured by Suzhou Vibrant Automation Co., Ltd., and is part of the Vibroite testing tooling and automation solutions portfolio.

The fixture body is made of high-performance bakelite material, offering excellent electrical insulation, wear resistance, and structural stability—ideal for electronic testing environments. A manual press-down mechanism ensures precise and simultaneous contact between probes and PCB test points, delivering consistent and reliable test results.

The fixture can be customized according to PCB size, test point layout, and testing requirements. It also supports multi-board testing, significantly improving testing efficiency. The solution is widely used in electronics manufacturing plants, PCBA factories, and R&D laboratories.

Solution

In electronics manufacturing and quality control, Vibroite PCB test fixtures serve as a key part of standardized PCB testing solutions, enabling stable and efficient testing processes.

Typical solution applications include:

• PCB and PCBA continuity and functional testing

• Multi-board or multi-station testing solutions

• Prototype verification and pre-production testing

By customizing fixture structure, pressing mechanisms, and probe layouts, Suzhou Vibrant Automation Co., Ltd. integrates the fixture seamlessly with test instruments, conveyors, or manual workstations, reducing test errors and improving product consistency and yield.
