Washing Machine Clutch Gear Shaft Servo Press Machine

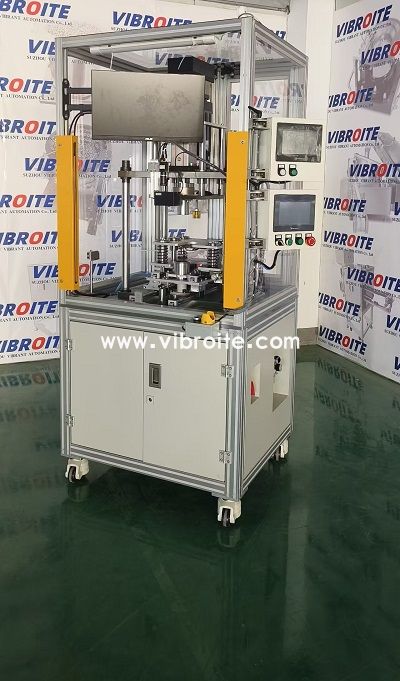

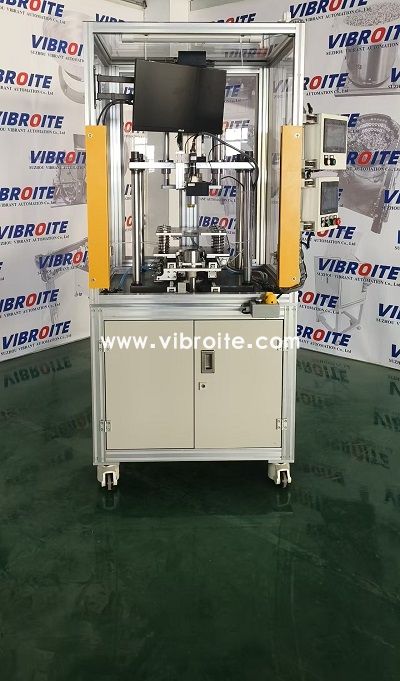

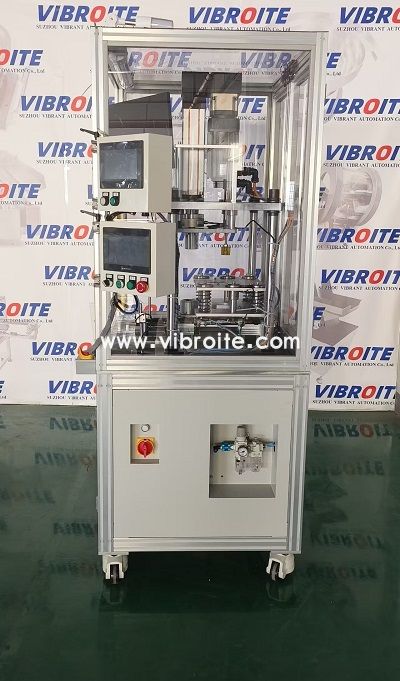

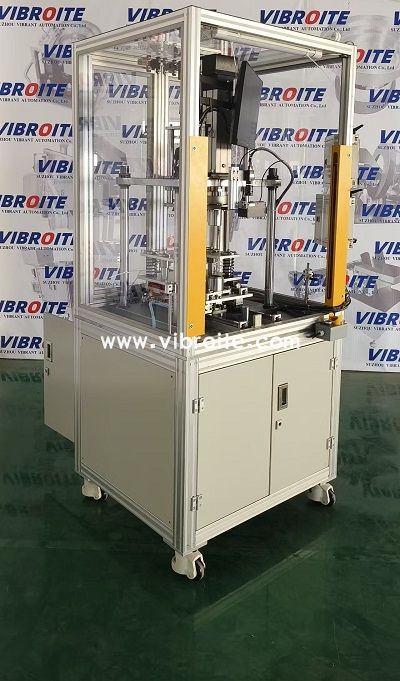

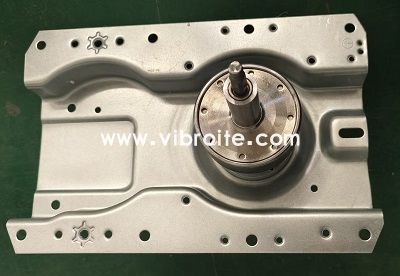

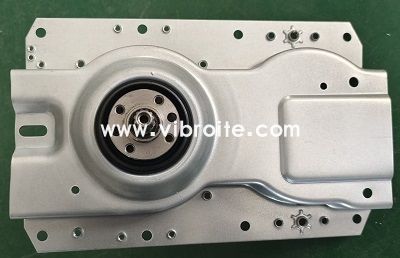

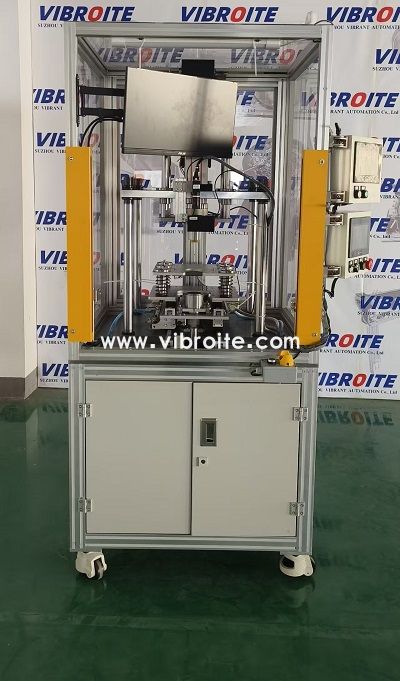

This machine is a 2-ton servo press system specifically designed for press-fitting washing machine clutch gear shafts. Featuring a high-rigidity frame and precision servo press control, it enables accurate monitoring and control of pressing force, displacement, and press-fit curves, meeting the stringent quality requirements of critical home appliance components.

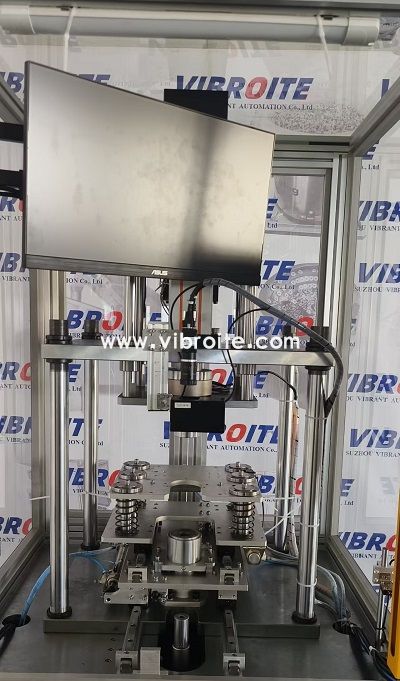

The system is equipped with dual Hikvision vision inspection units:
Upper vision system for detecting the position and orientation of the upper gear
Lower vision system for detecting the lower gear and shaft alignment
Before pressing, the vision systems accurately identify gear phase and position, ensuring precise alignment prior to press-fitting. This effectively prevents misalignment, component damage, and assembly defects.
The machine supports both robotic automatic loading and manual loading, allowing flexible deployment across different production lines. Multiple safety features are integrated, including light curtain protection and dual SMC pneumatic cylinders, ensuring high productivity while maintaining operator safety.
As a professional customized automation solution provider, Suzhou Vibrant Automation Co., Ltd. (Vibroite) delivers complete servo press-fitting solutions tailored to customer clutch structures, tolerances, and production capacity requirements.
