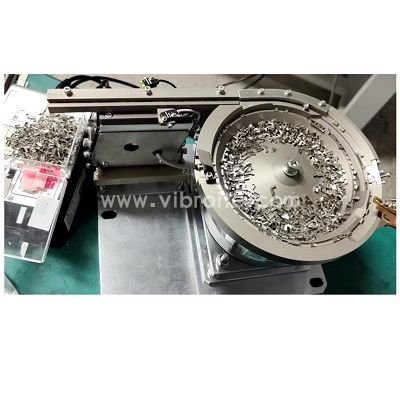

The Vibroite CNC Precision Vibratory Bowl Feeder is specifically designed for mobile phone speaker protector components, with a typical part size of 3 × 2 × 1.5 mm. These micro parts require high feeding stability and precise track design.

The bowl is manufactured from CNC-machined aluminum alloy with a 200 mm diameter. The surface is treated with hard anodizing, significantly improving wear resistance and extending service life, making it ideal for long-term, high-frequency production.

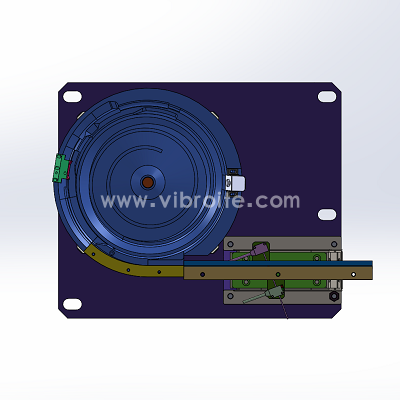

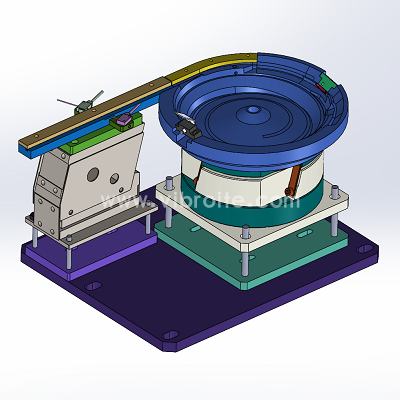

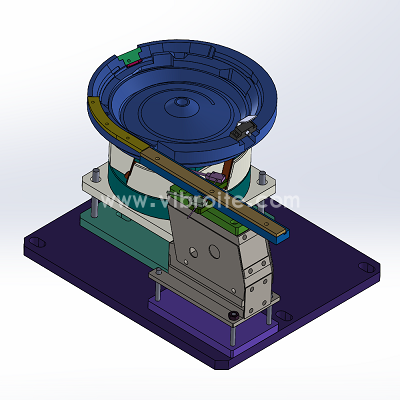

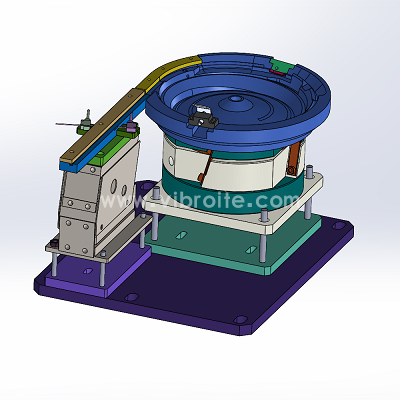

This feeder features a single bowl, single track design, combined with a linear vibratory feeder track, ensuring consistent part orientation and smooth transfer to downstream assembly machines, inspection systems, or vision equipment. A full-material stop function is integrated to automatically stop vibration when downstream accumulation is detected, preventing part damage and improving system reliability.

Under stable operating conditions, the feeding speed reaches approximately 60 pcs/min, meeting the high-efficiency and consistency requirements of the mobile electronics industry.

Key Features (Vibroite Advantages):

• Designed for micro speaker protector components

• CNC precision aluminum bowl construction

• Hard-anodized surface for superior wear resistance

• 200 mm compact bowl diameter

• Single bowl, single track for stable feeding

• Integrated linear feeder track

• Full-material auto-stop function

• Stable feeding speed up to 60 pcs/min

• Manufactured by Suzhou Vibrant Automation Co., Ltd.
